Natural Frequency of Free Transverse Vibrations Due to Uniformly Distributed Load Acting Over a Simply Supported Shaft

          Consider a shaft AB carrying a uniformly distributed load of 'w' per unit length as shown in Fig.,

Let           y₁ = Static deflection at the middle of the shaft,

                a₁ = Amplitude of vibration at the middle of the shaft, and

          w₁ = Uniformly distributed load per unit static deflection at the middle of the shaft = w/y₁ .

          Now consider a small section of the shaft at a distance 'x' from A and length 'δ x'.

Let        y = Static deflection at a distance 'x' from A, and length 'δ x'.

              a = Amplitude of its vibration.

          ∴ Work done on this small section

          Since the maximum potential energy at the extreme position is equal to the amount of work done to move the beam from the mean position to one of its extreme position therefore

          Maximum potential energy at the extreme position

          Assuming that the shape of the curve of a vibrating shaft is similar to the static deflection curve of a beam, therefore

          Substituting those values in equation (i), we have maximum potential energy at the extreme position

          Since the maximum velocity at the mean position is 'ω.a_1', where 'ω'  is the circular frequency of vibration, therefore

          Maximum kinetic energy at the mean position

          We know that the maximum potential energy at the extreme position is equal to the maximum kinetic energy at the mean position, therefore equating equations (ii) and (iii),

          When the shaft is simply supported, then the static deflection at a distance 'x' from A is

Where          W = Uniformly distributed load per unit length,

                       E = Young's modulus or the material o the shaft, and

                       I = Moment o inertia of the shaft.

          Now integrating the above equation (v) within the limits 0 to l,

          Substituting the value in equation (iv) from equation (vi) and (vii), we get circular frequency due to uniformly distributed load,

∴   Natural frequency due to uniformly distributed load,

          We know that the static defection of a simply supported shaft due to uniformly distributed load of  'w' per unit length, is

Equation (ix) may be written as,

Natural Frequency of Free Transverse Vibrations of a Shaft Fixed at Both Ends Carrying a Uniformly Distributed Load

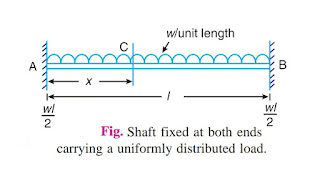

          Consider a shaft AB fixed at both ends and carrying a uniformly distributed load 'w' per unit length as shown in Fig.,

    We know that the static deflection at a distance 'x' from A is given by

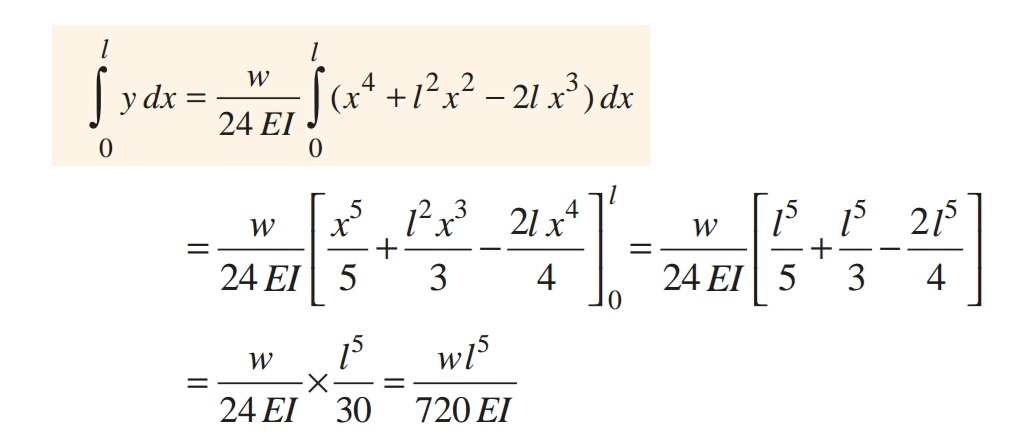

Integrating the above equation on both sides  with limits from 0 to l,

Now integrating  y²  within the limits from 0 to l,

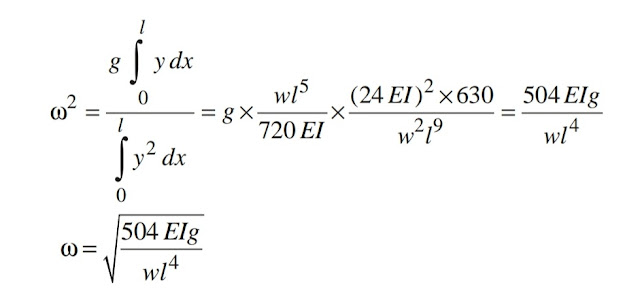

We know that

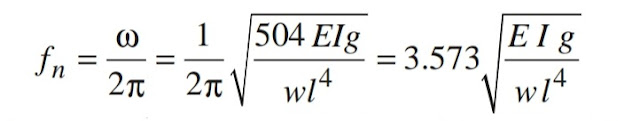

and natural frequency,

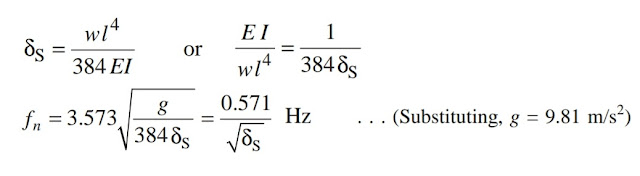

Since the static deflection of a shaft fixed at both ends and carrying a uniformly distributed load is

Natural Frequency of Free Transverse Vibrations For a Shaft Subjected to a Number of Point Loads

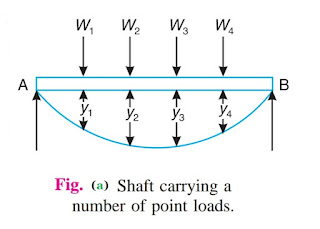

           Consider a shaft AB of negligible mass loaded with point loads W₁ , W₂,  W₃ and W₄ etc., as shown in Fig (a)., Let m₁ , m₂ , m₃ and m₄ etc., be the corresponding masses in Kg. The natural frequency of such a shaft may be found out by the following two methods:

1. Energy (or Rayleigh’s) method

          Let y₁ , y₂ , y₃ and y₄ etc. be total deflection under loads W₁ , W₂, W ₃ and W₄ etc., as shown in Fig (a).,

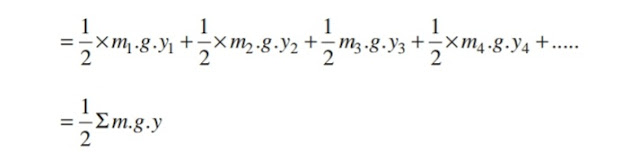

          We know that maximum potencial energy

and maximum kinetic energy

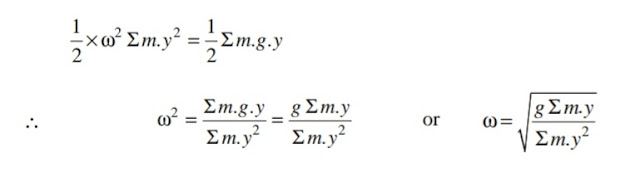

          Equating the maximum potencial energy and maximum kinetic energy we have,

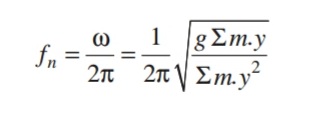

          Natural frequency of transverse vibration

2. Dunkerley’s method

          The natural frequency of transverse vibration for a shaft carrying a number of point loads and uniformly distributed from Dunkerley's empirical formula. According to this

Where          f_n = Natural frequency o transverse vibration of the shaft carrying point loads and uniformly distributed load.

                   f_n1 , f_n2 , f_n3 etc., = Natural frequency of transverse vibration of each point load.

                     f_ns = Natural frequency of transverse vibration off the uniformly distributed load (or due to the mass of the shaft).

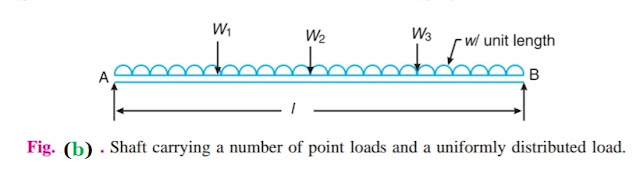

          Now consider a shaft AB loaded as shown in Fig (b).,

Let δ₁ , δ₂ , δ3 etc., = Static deflection due to the load W₁ , W₂, W ₃ etc., when considered seperately

                       δS = Static deflection due to the uniformly distributed load or due to the mass of the shaft.

We know that natural frequency of transverse vibration due to the load W₁ ,

Similarly, natural frequency of transverse vibration due to the load W₂ ,

and, natural frequency of transverse vibration due to the load W₃ ,

Also natural frequency of transverse vibration due to uniformly distributed load or weight of the shaft,

Therefore, according to Dunkerly's empirical formula, the natural frequency of the whole system,

Note: 1. When there is no uniformly distributed load or mass of the shaft is negligible, then δS  = 0.

 2. The value of etc., for a simply supported shaft may be obtained from the relation

Where    δ= Static deflection due to load W,

      a and b = Distance of the load from the ends,

                 E = Young's modulus for the material of the shaft,

                 I = Moment of inertia of the shaft, and

                 l = Total length of the shaft.

Critical or Whirling Speed or Whipping Speed of a Shaft

Critical Speed: "Critical or whirling or whipping speed is the speed at which the shaft tends to vibrate violently in transverse direction".

(or)

"The speed at which the shaft runs so that the additional deflection of the shaft from the axis of rotation becomes infinite, is known as Critical or Whirling speed".

          In actual practice, a rotating shaft carries different mountings and accessories in the form of gears, pulleys etc., When the gears or pulleys are put on the shaft, the centre of gravity of the pulley or gear does not coincide with the centre line of the bearings or with the axis of the shaft, when the shaft is stationary. This means that the centre of gravity of the pulley or gear is at a certain distance from the axis of rotation and due to this, the shaft is subjected to centrifugal force. This force will bent the shaft, which will further increase the distance of centre of gravity of the pulley or gear from the axis of rotation. This correspondingly increases the value of centrifugal force, which further increases the distance of centre of gravity from the axis of rotation. This effect is cumulative and ultimately the shaft fails. The bending of shaft not only depends upon the value o eccentricity (distance between centre of gravity of the pulley and the axis of rotation) but also depend upon the speed at which the shaft rotates.

The critical speed essentially depends on

          1. The eccentricity of the C.G of the rotating masses from the axis of rotation of the shaft

          2. Diameter of the disc.

          3. Span (Length) of the shaft, and

          4. Types of support connections at its end.

"The speed at which the shaft runs so that the additional deflection of the shaft from the axis of rotation becomes infinite, is known as Critical or Whirling speed".

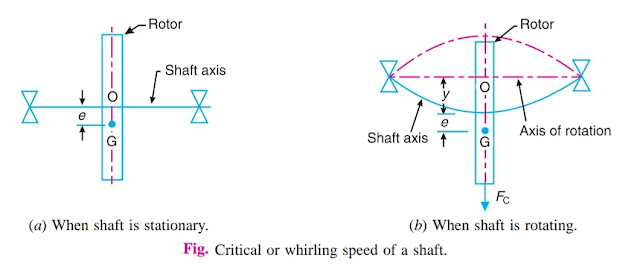

          Consider a shaft of negligible mass carrying a rotor, as shown in Fig (a)., The point 'O' is on the shaft axis and 'G' is the centre of gravity of the rotor. When the shaft is stationary, the centre line of the bearing and the axis of the shaft coincides.  Fig (b) shows the shaft when rotating about the axis of rotation at a uniform speed of 'ω' rad/s.

Let            m = Mass of the rotor,

                e = Initial distance of centre of gravity of the rotor form the centre line of the bearing or shaft axis, when the shaft is stationary.

               y =  Additional deflection of centre of gravity of the rotor when the shaft starts rotating at 'ω' rad/s.

                 s = Stiffness of the shaft i.e. the load required per unit deflection of the shaft.

Since the shaft is rotating at 'ω' rad/s , therefore centrifugal force acting radially outwards through 'G' causing the shaft to deflect is given by

               FC = m. ω² ( y + e)

The shaft behaves like a spring. therefore the force resisting the deflection 'y',

               = s.y

For the equilibrium position,

          A little consideration will show that when ω>ω_n, the value of 'y' will be negative and the shaft deflects is the opposite direction as shown in Fig (b).

          In order to have the value of 'y' always positive, both plus and minus signs are taken.

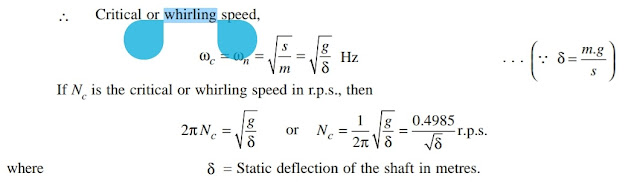

          We see from the above expression that when ω_n = ω_c , the value of 'y' becomes infinite, therefore  'ω_c' is the whirling speed.

          Hence the critical or whirling speed is the same as the natural frequency of transverse but its will be revolutions per second.

Note:

1. When the centre of gravity of the rotor lies between the centre line o the shaft and the centre line of the bearing, 'e' is taken as negetive. On the other hand, if the centre of gravity of the rotor does not lie between the centre line of the shaft and the centre line of the bearing (as in the above article) the value of e is taken positive.

2. To determine the critical speed of a shaft which may be subjected to point loads, uniformly distributed load or combination of both, find the frequency of transverse vibration which is equal to critical speed of a shaft in r.p.s. The Dunkerley's method may be used for calculating the frequency.

3. A shaft supported is short bearings (or ball bearings) is assumed to be a simply supported shaft while the shaft supported in long bearing (or journal bearing) is assumed to have both ends fixed.

Frequency of Free Damped Vibrations (Viscous Damping)

          We have already know that the motion of a body is resisted by frictional forces. In vibrating systems, the effect of friction is referred to as "Damping". The Damping provided by fluid resistance is known as viscous damping.

          We have also discussed that in damped vibrations, the amplitude of the resulting vibration gradually diminishes. This is due to the reason that a certain amount of energy is always dissipated to overcome the frictional resistance. The resistance to the motion of the body is provided partly by the medium in which the vibration takes place and partly by the internal friction, and in some cases partly by a dash pot or other external damping device.

          Consider a vibrating system, as shown in Fig., in which a mass is suspended from one end of the spiral spring and the other end of which is fixed. A damper is provided between the mass and the rigid support.

Let          m = Mass suspended from the spring,

                s = Stiffness of the spring,

                x = Displacement of the mass from the mean position at time t,

               δ = Static deflection of the spring

                 = m.g/s, and

              c = Damping coefficient or the damping force per unit velocity.

          Since in viscous damping, it is assumed that the frictional resistance to the motion of the body is directly proportional to the speed of the movement, therefore

          Damping force or frictional force on the mass acting in opposite direction to the motion of the mass

                 = c . dx/dt

Accelerating force on the mass, acting along the motion of the mass

                = m . d² x/dt²

and spring force on the mass. acting in opposite direction to the motion of the mass,

               = s.x

Therefore the equation of motion becomes

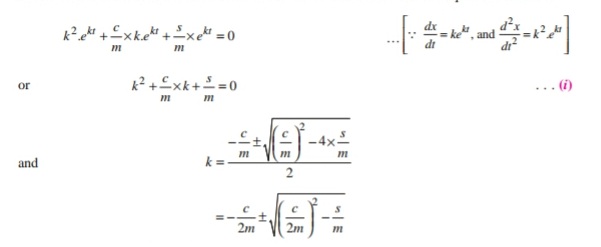

This is differential equation of second order. Assuming a solution of the form x = e^kt , where 'k' is a constant to be determined. Now the above differential equation reduces to

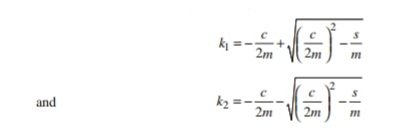

The two roots of the equation are

          The most general solution of the differential solution (i) with its right hand side equal to zero has only complementary function and it is given by

Where C_1 and  C₂ are two arbitrary constants which are to be determined from the initial conditions of the motion of the mass.

          It may be noted that the roots K₁ and K₂ may be real, complex conjugate (imaginary) or equal. We shall now discuss the three cases as below:

Case 1: When the roots are real (overdamping)

If ,, then the roots K₁ and K₂ are equal and negative. This is a case of Over damping or Large damping and the mass moves slowly to the equilibrium position. This motion is known as aperiodic, when the roots are real, the most general solution of the differential equation is

Note: In actual practice, the overdamped vibrations are avoided.

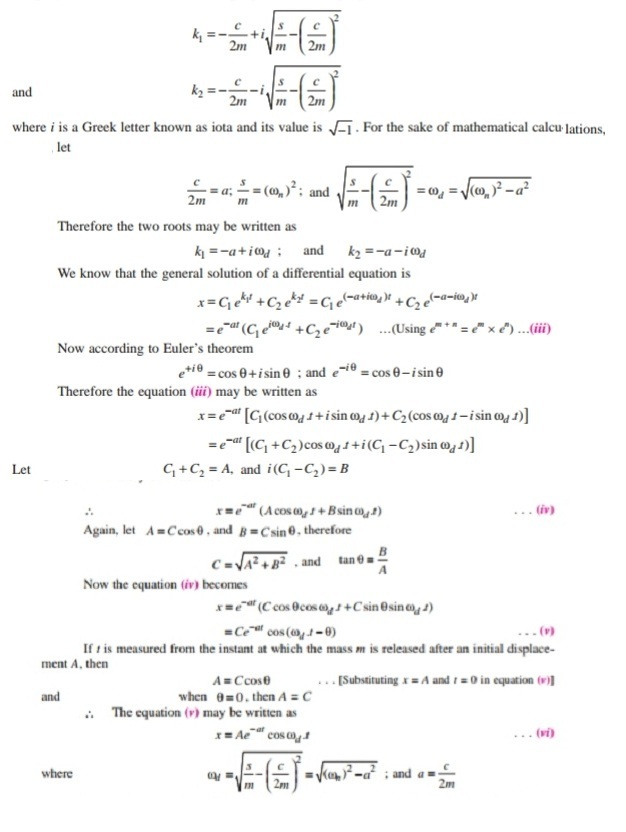

Case  2: When the roots are complex conjugate (underdamping)

If , then the radical (i.e., the term under the square root) becomes negative.

The two roots K₁  and K₂ are then known as complex conjugate. This is a most practical case of damping and it is known as Under damping or Small damping. the roots are

          We see from equation (iv), that the motion of the mass is simple harmonic whose circular damped frequency is  ω_d and the amplitude ae^-at  which diminishes exponentially with time as shown in Fig., Though the mass eventually returns to its equilibrium position because of its inertia, yet it overshoots and the oscillations may take some considerable time to die away.

Note: When no damper is provided in the system, then C = 0. Therefore the frequency of the undamped vibration,

It is the same as discussed under free-vibrations.

Case 3. When the roots are equal (critical damping)

  then the radical (i.e., the term under the square root) becomes zero and the two roots K₁  and K₂ are equal. This is a case of Critical damping. In other words, the critical damping is said to occur when frequency of damped vibration ( f_d) is zero (i.e motion is aperiodic). This type of damping is also avoided because the mass moves back rapidly to its equilibrium position, in the shortest possible time.

          For critical damping, equation (ii) may be written as

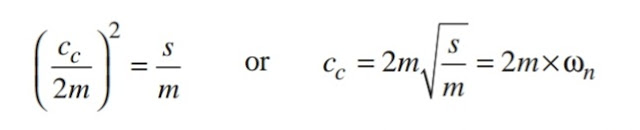

          Thus the motion is again aperiodic. The critical damping coefficient (C_C) may be obtained by substituting C_C for C in the condition for critical damping, i.e.,

          The critical damping coefficient is the amount of damping required for a system to be critically damped.
